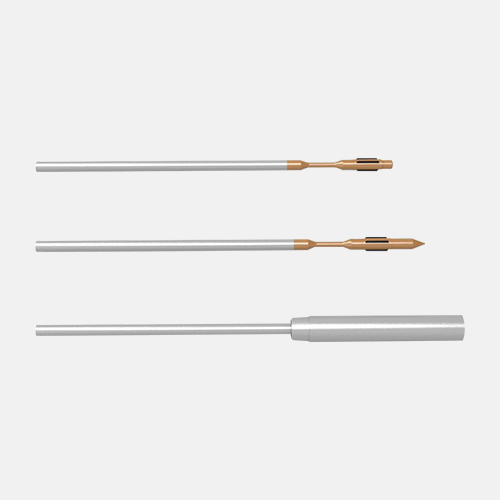

The Slim-hole MWD System is miniaturized series developed to meet the needs of small borehole operation. The overall outer diameter is reduced to 38mm, significantly reducing circulation pressure loss and casing erosion. The system features flexible joint design, improving overall instrument passability, suitable for sidetracking in old wells and slim-hole short-radius directional drilling operations.
Ø Small diameter, high-driving force motor design
Ø AI-based signal filtering and processing methods for stronger small signal decoding capability
Ø Downhole condition recognition with intelligent measurement data sequence switching
Ø High compatibility of downhole electrical interfaces
Ø Flexible joint design, with deviation rate up to 108°/30m
| System Specifications | |||
| OD | Φ38mm | ||
| Tool Length | 5.8m or 6.9m (with gamma) | ||
| Max. Working Pressure | 20kpsi | ||
| Working temperature | -40~175℃ | ||
Flow Rate Range | 5~15L/s | ||
Build Rate | 108°/30m | ||
| Continuous Working Time | ≥230h | ||
| Shock | 1000g@0.5ms | ||
| Vibration | 25g RMS | ||
| Measurement Parameters | |||
| Natural/Azimuthal Gamma Sensor | |||
| Parameter | Range | Sensitivity | Accuracy |
| Gamma | 0~1000API |
Natural 1.97CPS/API Azimuthal 0.52CPS/API | ±5%F.S.@150℃ ±10%F.S.@175℃ |
| Directional Probe | |||
| parameter | range | resolution | precision |
| Inclination | 0~180° | 0.1° | ±0.1° |
| Azimuth | 0~360° | 1.0° | ±1.0° |
| Toolface | 0~360° | 1.0° | ±1.0° |
| Temperature | 0~175℃ | 0.1℃ | ±0.5℃ |
| Magnetic field | 0~100μT | 0.01μT | ±0.075μT |
| Magnetic dip | -90~90° | 0.1° | ±0.15° |
| Surface System | |||
| RFD | ATEX Zone 1, CE certified | ||
| Surface Processor | 110/220V power input, UL&CE certified | ||
| Surface Transmission | Cable bus/Wireless communication | ||
In 2024, the system was deployed in 8 wells in the Zhongyuan work area, with cumulative footage of 5900m and total working time of 2007h. Addressing objective factors in the Wenmingzhai block wells (Ming45-side2, Ming227-side1, Wen213-9-side1) such as casing deformation, severe casing wall corrosion and wear, high annular friction, small sidetrack target radius, limited controllable vertical depth, large displacement in long open hole sections, and trajectory control difficulties, the System effectively solved challenges related to limited flow range in small boreholes and poor instrument passage, effectively increasing drilling speed and shortening well construction cycles.
On September 12, 2024, the System reached maximum drilling depth of 7363m in Yuanba 2-2H well in the Southwest work area, with maximum bottom hole temperature of 140°C, working continuously and stably for 283h, completing the operation in two trips.
